[產品說明]: 碳纖維長絲它不僅具有碳材料的固有本征特性，又兼具紡織纖維的柔軟可加工性，是新一代增強纖維。碳纖維是一種力學性能優異的新材料，它的比重不到鋼的1/4，抗拉強度是鋼的7~9倍以上，抗拉彈性模量亦高于鋼。Product Description: Carbon fiber yarn not only with the intrinsic properties of the material, s
[產品說明]: 碳纖維長絲它不僅具有碳材料的固有本征特性，又兼具紡織纖維的柔軟可加工性，是新一代增強纖維。碳纖維是一種力學性能優異的新材料，它的比重不到鋼的1/4，抗拉強度是鋼的7~9倍以上，抗拉彈性模量亦高于鋼。

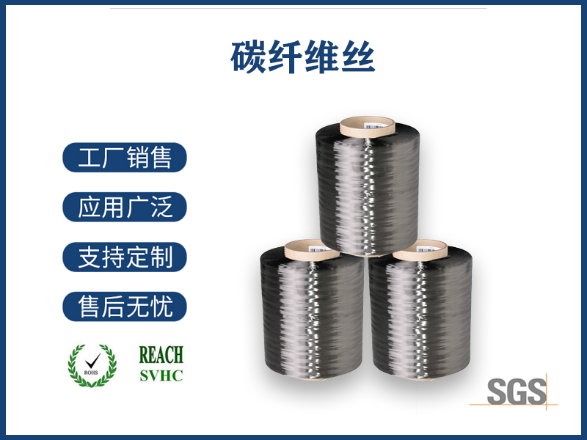

Product Description: Carbon fiber yarn not only with the intrinsic properties of the material, soft processing of textile fibers, is a new generation of reinforcement fibers. Carbon fiber is a new material with excellent mechanical properties and 1/4 of its specific gravity less than steel, tensile strength is 7~9 times more than steel, tensile modulus of elasticity than steel.
[應用方式]: 廣泛用于民用，軍用，建筑，化工，工業，航天以及超級跑車領域。碳纖維可加工成織物、氈、席、帶、紙及其他材料。碳纖維在土木建筑領域：碳纖維也應用在工業與民用建筑物、鐵路公路橋梁、隧道、煙囪、塔結構等的加固補強。
Application: Widely used in civil, military, construction, chemical, industrial, aerospace and super sports fields. Carbon fiber can be processed into fabric, carpet, seats, Ribbon, paper and other materials. Carbon fiber in the field of construction: carbon fiber is also used in structural reinforcement in industrial and civil construction, railway and highway bridges, tunnels, chimneys, and towers.
一、主要技術指標：
Main specification:
| 產品規格Specification | 拉伸強度Tensile strength(Mpa) | 密度Density（g/cm3） | 電阻Resistance（Ω.cm） | 伸長率Elongation（%） |
| 1K | 2740 | 1.80±0.04 | 1.0*10-3 | 1.0 |
| 3K | 3530 | 1.80±0.04 | 1.0*10 | 1.0 |
| 6K | 4210 | 1.80±0.04 | 1.0*10 | 1.0 |
| 12K | 4410 | 1.80±0.04 | 1.0*10 | 1.0 |
| 24K | 4900 | 1.80±0.04 | 1.0*10 | 1.0 |
| 48K | 5490 | 1.80±0.04 | 1.0*10 | 1.0 |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | ||||
二、顏色：黑色。
Color: Black
三、電氣特性：抗拉性能是所有纖維中最好的，耐高溫，軟化點367-370℃，長期使用溫度為200度℃以上，防火性能好，在火焰中不熔融，離開火源有自熄性。抗切割，熱穩定性好，在高溫下不熔，玻璃化轉變溫度約345°C； 拉伸性能好，彎曲性能一般，打結易形成毛刺; 耐普通有機溶劑及鹽類溶液，耐強酸、強堿性差；對紫外線敏感，長時間暴露在陽光下，強度衰減約40%。
Electrical characteristics: Anti-pulled properties is the best in all fiber, resistance high temperature, softening points is 367-370 ℃, long-term using temperature for 200 ℃ above, fireproof properties is good, not melting in the flame, has self-extinguishing, anti-cutting, heat stability when left fire, not melt in high temperature, glass of change temperature about 345 ° c; good stretch properties, general bending properties, easy formed Burr if knot: resistance general organic solvent and the salts solution, resistance strong acid and alkaline is poor; on UV sensitive when exposed in sunshine for long time, strength attenuation about 40%；
四、包裝方式：編織袋或紙箱包裝。每箱24KG。
Packaging: Woven bag or carton packaging, 24kg per bag.
